Petersen ICML’21 Differentiable Sorting Networks for Scalable Sorting and Ranking Supervision¶

import torch

def f(x):
    s = 10.0
    return 1. / (1. + torch.exp(-s*x))

def get_pm(x, ij_list):
    n = x.shape[0]
    P = torch.eye(n, dtype=x.dtype)
    for i, j in ij_list:
        alpha_ij = f(x[j] - x[i])
        P[i, i] = alpha_ij
        P[j, j] = alpha_ij
        P[i, j] = 1 - alpha_ij
        P[j, i] = 1 - alpha_ij
    return P

def mprint(*args):
    for x in args:
        print(x)

x = torch.tensor([3, 2, 4, 1], dtype=torch.float32)

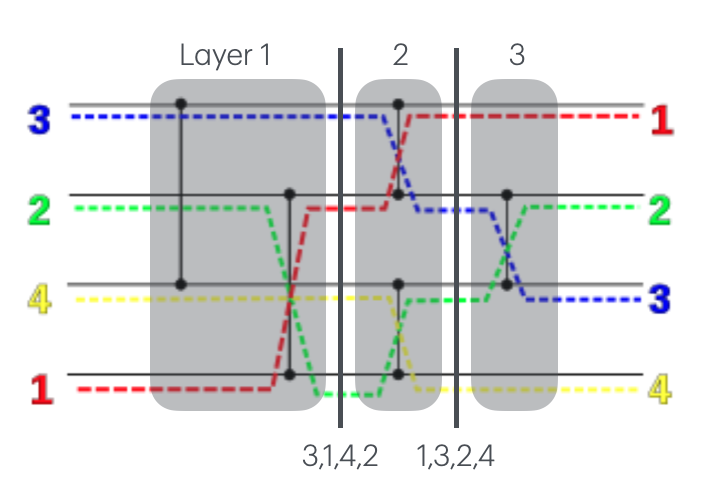

# layer1
P1 = get_pm(x, ij_list=[(0, 2), (1,3)])
P = P1
sx = P @ x
mprint(sx, P, P.sum())

# layer2
P2 = get_pm(sx, ij_list=[(0, 1), (2,3)])
P = torch.matmul(P2.T, P1.T)
sx = P @ x
mprint(sx, P, P.sum())

# layer3
P3 = get_pm(sx, ij_list=[(1, 2)])
P = torch.matmul(P3.T, torch.matmul(P2.T, P1.T))
sx = P @ x
mprint(sx, P, P.sum())

# https://github.com/Felix-Petersen/diffsort

import math
from typing import List, Tuple

import torch
import numpy as np

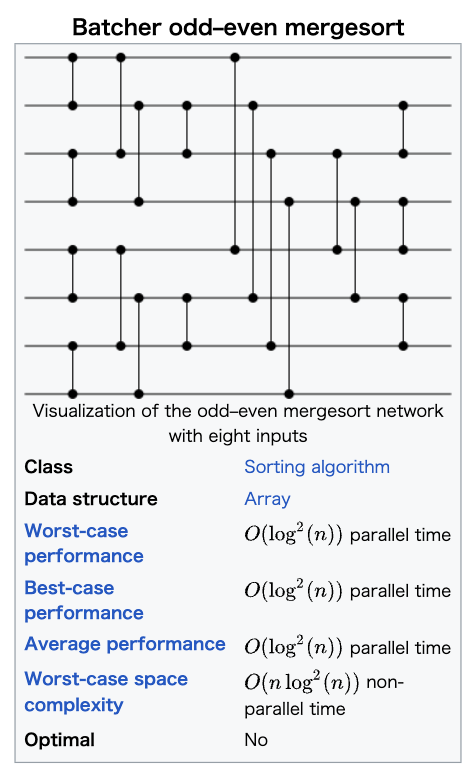

def odd_even_network(n):
    layers = n

    network = []

    shifted: bool = False
    even: bool = n % 2 == 0

    for layer in range(layers):

        if even:
            k = n // 2 + shifted
        else:
            k = n // 2 + 1

        split_a, split_b = np.zeros((k, n)), np.zeros((k, n))
        combine_min, combine_max = np.zeros((n, k)), np.zeros((n, k))

        count = 0

        # for i in range(n // 2 if not (even and shifted) else n // 2 - 1):
        for i in range(int(shifted), n-1, 2):
            a, b = i, i + 1
            split_a[count, a], split_b[count, b] = 1, 1
            combine_min[a, count], combine_max[b, count] = 1, 1
            count += 1

        if even and shifted:
            # Make sure that the corner values stay where they are/were:
            a, b = 0, 0
            split_a[count, a], split_b[count, b] = 1, 1
            combine_min[a, count], combine_max[b, count] = .5, .5
            count += 1
            a, b = n - 1, n - 1
            split_a[count, a], split_b[count, b] = 1, 1
            combine_min[a, count], combine_max[b, count] = .5, .5
            count += 1

        elif not even:
            if shifted:
                a, b = 0, 0
            else:
                a, b = n - 1, n - 1
            split_a[count, a], split_b[count, b] = 1, 1
            combine_min[a, count], combine_max[b, count] = .5, .5
            count += 1

        assert count == k

        network.append((split_a, split_b, combine_min, combine_max))
        shifted = not shifted

    return network


def get_sorting_network(type, n, device):
    def matrix_to_torch(m):
        return [[torch.from_numpy(matrix).float().to(device) for matrix in matrix_set] for matrix_set in m]
    if type == 'odd_even':
        return matrix_to_torch(odd_even_network(n))
    else:
        raise NotImplementedError('Sorting network `{}` unknown.'.format(type))

SORTING_NETWORK_TYPE = List[torch.tensor]

def s_best(x):
    return torch.clamp(x, -0.25, 0.25) + .5 + \
        ((x > 0.25).float() - (x < -0.25).float()) * (0.25 - 1/16/(x.abs()+1e-10))


class NormalCDF(torch.autograd.Function):
    def forward(ctx, x, sigma):
        ctx.save_for_backward(x, torch.tensor(sigma))
        return 0.5 + 0.5 * torch.erf(x / sigma / math.sqrt(2))

    def backward(ctx, grad_y):
        x, sigma = ctx.saved_tensors
        return grad_y * 1 / sigma / math.sqrt(math.pi * 2) * torch.exp(-0.5 * (x/sigma).pow(2)), None


def execute_sort(
        sorting_network,
        vectors,
        steepness=10.,
        art_lambda=0.25,
        distribution='cauchy'
):
    x = vectors
    X = torch.eye(vectors.shape[1], dtype=x.dtype, device=x.device).repeat(x.shape[0], 1, 1)

    for split_a, split_b, combine_min, combine_max in sorting_network:
        split_a = split_a.type(x.dtype)
        split_b = split_b.type(x.dtype)
        combine_min = combine_min.type(x.dtype)
        combine_max = combine_max.type(x.dtype)

        a, b = x @ split_a.T, x @ split_b.T

        # float conversion necessary as PyTorch doesn't support Half for sigmoid as of 25. August 2021
        new_type = torch.float32 if x.dtype == torch.float16 else x.dtype

        if distribution == 'logistic':
            alpha = torch.sigmoid((b-a).type(new_type) * steepness).type(x.dtype)

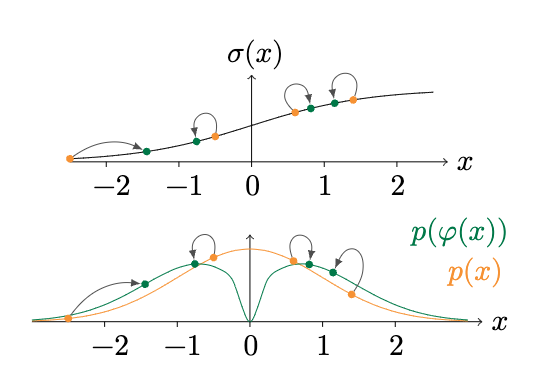

        elif distribution == 'logistic_phi':
            alpha = torch.sigmoid((b-a).type(new_type) * steepness / ((a-b).type(new_type).abs() + 1.e-10).pow(art_lambda)).type(x.dtype)

        elif distribution == 'gaussian':
            v = (b - a).type(new_type)
            alpha = NormalCDF.apply(v, 1 / steepness)
            alpha = alpha.type(x.dtype)

        elif distribution == 'reciprocal':
            v = steepness * (b - a).type(new_type)
            alpha = 0.5 * (v / (2 + v.abs()) + 1)
            alpha = alpha.type(x.dtype)

        elif distribution == 'cauchy':
            v = steepness * (b - a).type(new_type)
            alpha = 1 / math.pi * torch.atan(v) + .5
            alpha = alpha.type(x.dtype)

        elif distribution == 'optimal':
            v = steepness * (b - a).type(new_type)
            alpha = s_best(v)
            alpha = alpha.type(x.dtype)

        else:
            raise NotImplementedError('softmax method `{}` unknown'.format(distribution))

        aX = X @ split_a.T
        bX = X @ split_b.T
        w_min = alpha.unsqueeze(-2) * aX + (1-alpha).unsqueeze(-2) * bX
        w_max = (1-alpha).unsqueeze(-2) * aX + alpha.unsqueeze(-2) * bX
        X = (w_max @ combine_max.T.unsqueeze(-3)) + (w_min @ combine_min.T.unsqueeze(-3))
        x = (alpha * a + (1-alpha) * b) @ combine_min.T + ((1-alpha) * a + alpha * b) @ combine_max.T
    return x, X


def sort(
        sorting_network: SORTING_NETWORK_TYPE,
        vectors: torch.Tensor,
        steepness: float = 10.0,
        art_lambda: float = 0.25,
        distribution: str = 'cauchy'
) -> Tuple[torch.Tensor, torch.Tensor]:
    return execute_sort(
        sorting_network=sorting_network,
        vectors=vectors,
        steepness=steepness,
        art_lambda=art_lambda,
        distribution=distribution
    )

x = torch.FloatTensor([
    [6.5, 0.4, 1.5, 3.8,],
    [3.5, 9.2, 2.4, 0.8,]
])
sn = get_sorting_network('odd_even', x.shape[1], 'cpu')

def check(distribution):
    sx, pm = execute_sort(sn, x, distribution=distribution)
    b_hat = torch.arange(1, x.shape[1] + 1, dtype=x.dtype).repeat(x.shape[0], 1).unsqueeze(2)
    sr = torch.matmul(pm, b_hat)[...,0]

    print("x =", x)
    print("sort(x) =", sx)
    print("rank(x) =", sr)

check("logistic")

check("logistic_phi")

check("cauchy")
